SINGLE PHASE SERVO LITE Ts (SPSL Ts/SPSL 2G)
It is the single phase version of our True RMS Series Control Cards
Salient Features:
- ARM Based Design
- Fast (10 ms) Correction
- Field programmable servo parameters including correction accuracy using push button and LCD Display.
- Real time correction.
- As the correction is done based on True RMS measurement, the servo will be stable even in non-sinusoidal environments.
- Field Programmable multi stage TRIP and trip delay for low voltage, high voltage and overload.
- Event Logging, Details of last trip is capture and stored in EEPROM. Elapsed time also displayed for evaluating the cause.
- User friendly HMI.
- Field programmable servo parameters and are stored in NV memory

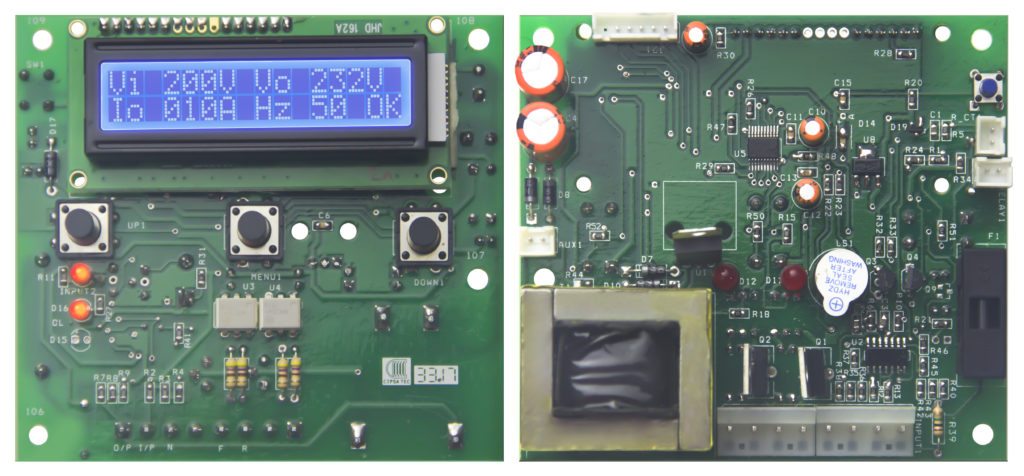

SPSL-TS
SERVOLITE: (TPSL TS AND TPSL PS)
SERVOLITE TS/PS is an advanced True RMS version of stabilizer control card, with innovative features like three windows trip, power factor (TPSL PS only) event logger with time and date etc.
Salient Features:
- Fast (10ms) correction.
- True RMS measurements.
- Field programmable servo parameters including correction accuracy using push button and LCD (16*2).
- Phase reversal/single phasing protection.
- Real time correction.
- Power Factor measurements available in TPSL PS version.
- Earth to neutral voltage measurements.
- Cutoff options can be enabled and disabled by using dip switch (input low and high, output low and high, overload, phase reversal, manual drive and earth to neutral).
- Phase to phase measurements for both input and output.
- As the correction is done based on real time signal measurement, the servo will be stable even in nonsinusoidal environments.
- Field Programmable Multi stage TRIP and trip delay for low voltage, high voltage and overload.
- Manual drive can be done by pushbutton.
- MCCB can be used for tripping.
- Event Logging (up to 100 logs), Details of last trip is capture and stored in EEPROM.
- User friendly HMI.
- Independent output voltage setting.
- Neutral Missing Indication and trip.

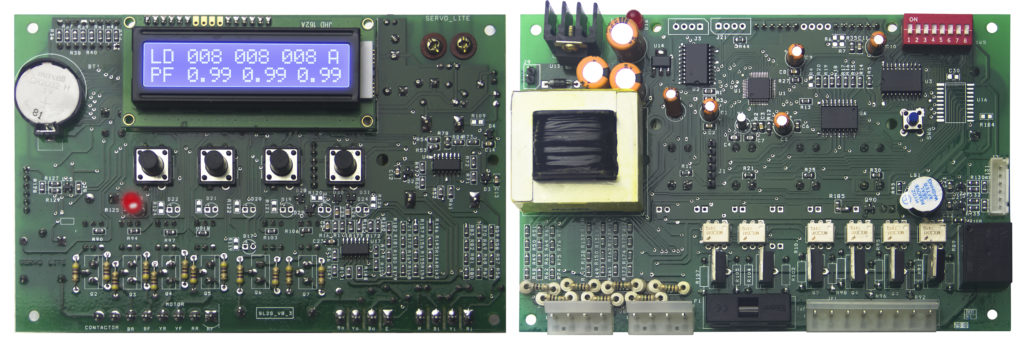

TPSL PS
TPSL TS
