It is the ELITE version of single Servo control card with four line LCD (20*4).

Microcontroller based single phase servo stabilizer: Salient Features:

  • Fast (10ms) correction.
  • Field programmable servo parameters including correction accuracy using push button and larger (20*4) LCD Display.
  • As the correction is done based on real time signal measurement, the servo will be stable even in nonsinusoidal environments.
  • Field Programmable 2 stage TRIP and trip delay for low voltage, high voltage and overload.
  • Manual drive can be done by pushbutton.
  • Event Logging, Details of last trip is capture and stored in EEPROM. Elapsed time also displayed for evaluating the cause.
  • User friendly HMI.
  • Field programmable servo parameters and are stored in NV memory.

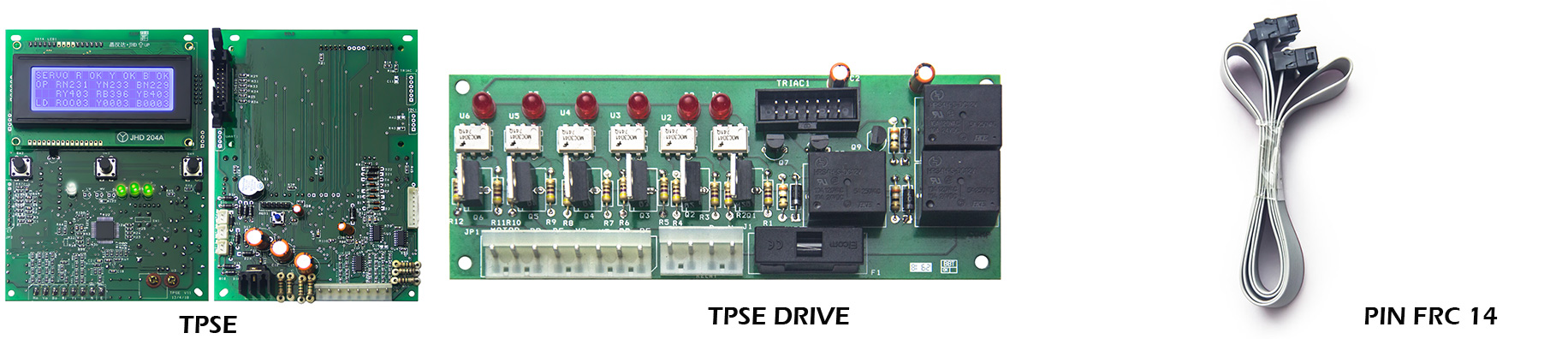

SPSE ( Single Phase Servo Elite)

TPSE (Three Phase Servo Elite)
